The DraftAngle can be used to apply an angle to specific faces of a shape. Specify the angle and faces to perform the draft angle on. It will use the position and direction to define the neutral plane. If more control is needed, an operations list can be provided with a face, direction, angle, and neutral plane for each face.

Like Fillet and Chamfer, the disabled flag can be used to disable the operation for debugging.

# Created in DeclaraCAD
from math import radians
from declaracad.occ.api import *
from declaracad.parts.display import Axis

enamldef Assembly(Part):
    Axis:
        pass
    DraftAngle:
        transparency = 0.5
        angle = radians(15)
        position = (0, 0, box.dz)
        faces = [self.children[0].topology.faces[0]]
        Fillet:
            radius = 1
            operations = [
                e for i, e in enumerate(box.topology.edges)
                if i in (4, 6)
            ]
            Box: box:
                dx = 10
                dy = 12
                dz = 10

Draft angle

Note: The algorithm will select adjacent faces automatically when fillets are present.

Another example demonstrating how to easily add an angled pitch to walls using draft angle which may be of use for making molds or castings.

# Created in DeclaraCAD
from math import radians
from declaracad.occ.api import *
from declaracad.parts.display import Axis

enamldef Assembly(Part):
    Axis:
        pass
    DraftAngle:
        angle = radians(-10)
        faces = self.children[0].topology.faces[0:4]
        ThickSolid:
            offset = -1
            faces = [box.topology.faces[5]]
            Box: box:
                position = (-dx/2, -dy/2)
                dx = 10
                dy = 20
                dz = 5

Draft angle wall pitch

To specify multiple different angles use the operations and include a DraftAngle.Parameters instance in each item.

# Created in DeclaraCAD
from math import radians
from declaracad.occ.api import *


enamldef Assembly(Part):
    Axis:
        pass
    attr thickness = 12
    DraftAngle:
        transparency = 0.5
        operations = [
            # Add a 10 degree angle to all except the top and bottom faces
            DraftAngle.Parameters(
                angle=radians(10),
                face=self.children[0].topology.faces[i],
                neutral_plane=(Point(0,0,box.dz), Direction(0, 0, 1))
            )
            for i in (0, 5, 6, 9)
        ] + [
            # Add a 5 degree angle to the top face
            DraftAngle.Parameters(
                angle=radians(5),
                face=self.children[0].topology.faces[1],
                direction = Direction(0, 1, 0),
                neutral_plane=(Point(box.dy,0,0), Direction(0, 1, 0))
            )
        ]
        Chamfer:
            operations = [
                (10, box.topology.edges[2]),
                (10, box.topology.edges[6]),
                (5, box.topology.edges[0]),
                (5, box.topology.edges[4]),
            ]
            Box: box:
                position = (-dx/2, 0)
                dx = 70 + 2*thickness
                dy = 100
                dz = 30

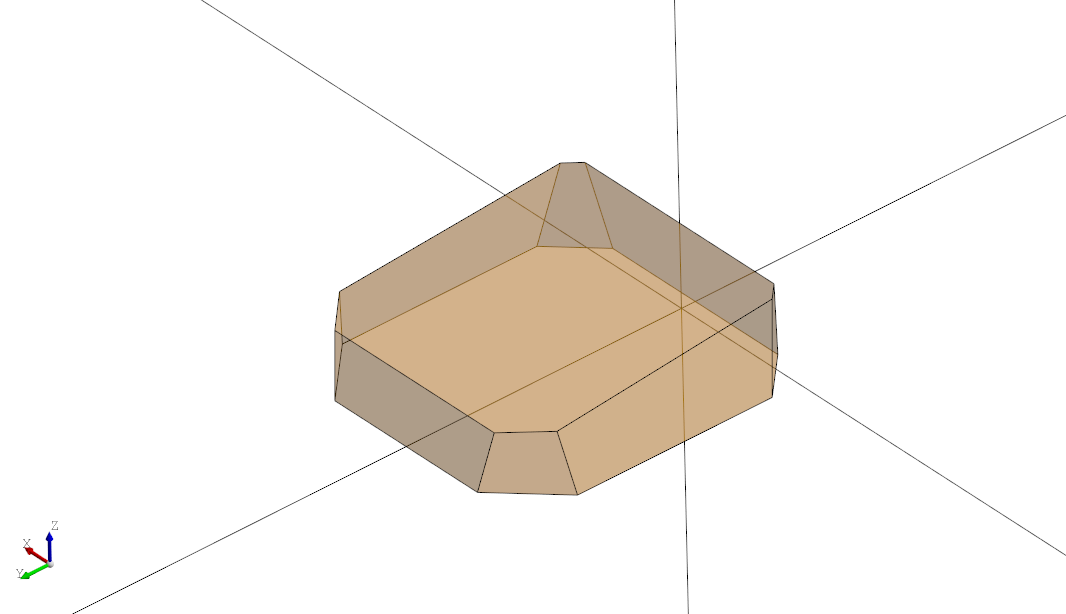

Draft Angle Operations
